RP-C-12B Screw Terminals

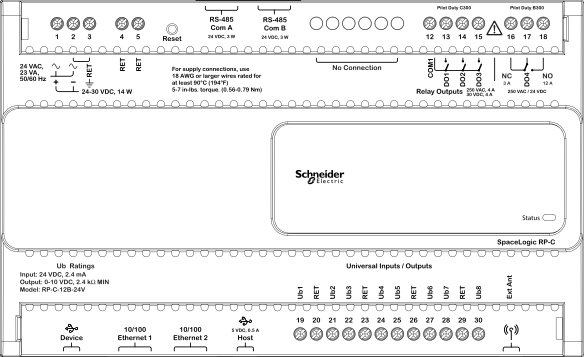

The RP-C-12B model has 12 I/O points and the controller is equipped with 24 fixed screw terminals.
Danger
|
|---|
|
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH Disconnect the power supply and any energized circuits and equipment before wiring. Failure to follow these instructions will result in death or serious injury. |
Recommended screw tightening torque: 0.56 to 0.79 Nm (5 to 7 lbf.in)
The 24 screw terminals are used as follows:
Three screw terminals for the power input
Two screw terminals for the return (RET) terminals 4 and 5
Four screw terminals for the three relay outputs
Three screw terminals for the high power relay output
12 screw terminals for the eight universal inputs/outputs of type Ub
Terminal number | Designation | Usage |
Power input | ||
1 |
| 24 VAC, 50/60 Hz, 23 VA Positive lead (+) when operating the device from 24-30 VDC, 14 W |
2 |
| Earth ground lead of 24 VAC transformer connects to terminal 2. Terminals 2 and 3 are internally connected. Negative (–) lead when operating the device from 24-30 VDC, 14 W |
3 | RET
| Terminal 3 is provided for convenience to connect to protective earth ground (optional). Terminals 2 and 3 are internally connected. |
Return terminals | ||
4 | RET | Internally connected to all earth ground and RET terminals |
5 | RET | Internally connected to all earth ground and RET terminals |
Relay outputs | ||
12 | COM1 | Common connection for DO1, DO2, and DO3 |
13 | DO1 | Relay output, type Form A |
14 | DO2 | Relay output, type Form A |
15 | DO3 | Relay output, type Form A |
High power relay outputs | ||
16 | NC | Normally Closed terminal. High power relay output, type Form C. |
17 | DO4 | Common terminal. High power relay output, type Form C. |
18 | NO | Normally Open terminal. High power relay output, type Form C. |
Universal inputs/outputs | ||
19 | Ub1 | Universal input/output, type Ub |
20 | RET | Internally connected to all earth ground and RET terminals |
21 | Ub2 | Universal input/output, type Ub |
22 | Ub3 | Universal input/output, type Ub |
23 | RET | Internally connected to all earth ground and RET terminals |
24 | Ub4 | Universal input/output, type Ub |
25 | Ub5 | Universal input/output, type Ub |
26 | RET | Internally connected to all earth ground and RET terminals |
27 | Ub6 | Universal input/output, type Ub |
28 | Ub7 | Universal input/output, type Ub |
29 | RET | Internally connected to all earth ground and RET terminals |
30 | Ub8 | Universal input/output, type Ub |
