SpaceLogic™ AS-P-SBA

arrow1_rotationSafety Information arrow1_rotationTechnical Literature arrow1_rotationDimensions arrow1_rotationInstalling the Module arrow1_rotationLabeling the Module arrow1_rotationConnections arrow1_rotationWiring arrow1_rotationElectronics Module and Terminal Base arrow1_rotationSpare Parts arrow1_rotation AS-P Software arrow1_rotationSoftware License Notice arrow1_rotationSpecifications arrow1_rotationAddendum - California Proposition 65 Warning Statement for California Residents

Part number: SXWASPSBX10A01

Safety Information

Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by Schneider Electric for any consequences arising out of the use of this material.

Carefully read these instructions and all information relevant for this product before trying to install it. See the list of technical literature.

Technical Literature

  • SpaceLogic and EasyLogic - Hardware Installation System Guide, 04-XX001-XX-en

The technical literature and declarations of conformity can be accessed on the Schneider Electric extranet, ecoxpert.se.com. Contact your local Schneider Electric sales office for a hard copy of the documentation or for additional information.

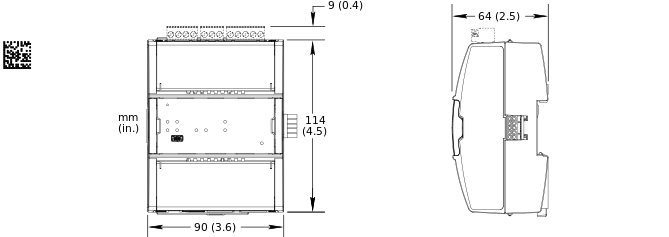

Dimensions


action_zoom_plus_stroke

Installing the Module

Warning Warning

HAZARD OF ELECTRIC SHOCK OR EQUIPMENT DAMAGE

Install only the module type that is indicated on the label on the terminal base backplane.

Failure to follow these instructions can result in death, serious injury, or equipment damage.


action_zoom_plus_stroke

Labeling the Module


action_zoom_plus_stroke

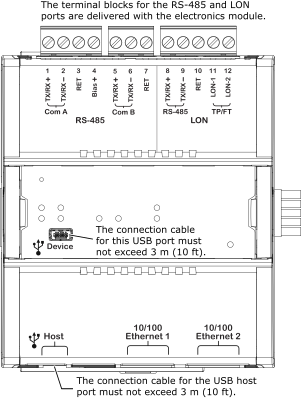

Connections

Notice

DECREASED RS-485 NETWORK PERFORMANCE

Consider the RS-485 bus termination and biasing. For more information, see the Hardware Installation System Guide.

Failure to follow these instructions can result in decreased performance and reliability of the RS-485 network.


action_zoom_plus_stroke

Wiring

Recommended screw tightening torque: 0.56 Nm (5 lbf.in)

For information on wiring, see the SpaceLogic and EasyLogic - Hardware Installation System Guide.

Electronics Module and Terminal Base

Device

Part number

SpaceLogic AS-P-SBA
SXWASPSBX10A01
TB-ASP-W1-BAA Terminal Base
SXWTBASW110A02
  • The AS-P-SBA model supports Secure Boot.

Spare Parts

Device

Part number

AS-P connector kit
SXWASPCON10001

AS-P Software

The AS-P is delivered without software. Install the software on the AS-P using Device Administrator.

Software License Notice

This product contains code that is covered by the GNU General Public License (GPL). The relevant code is available on the Schneider Electric extranet, ecoxpert.se.com

Specifications

DC input
Nominal voltage
24 VDC

action_zoom_plus_stroke
Power consumption
10 W
Port types
USB device port
Mini-B
USB host port
Type-A
Ethernet port 1 and 2
10/100BASE-TX (RJ45), IEEE 802.3 compliant
Default Ethernet port configuration
Port 1: DHCP client, Port 2: Disabled
Operation environment
Ambient temperature, operating
0 to 50 °C (32 to 122 °F)
Humidity
Maximum 95 % RH non-condensing
Mechanical
Ingress protection rating
IP 20
Plastic flame rating
UL94-5VB
Electrical
I/O bus power
24 VDC

action_zoom_plus_stroke
max. 30 W per I/O bus power supply, Class 2

Addendum - California Proposition 65 Warning Statement for California Residents


action_zoom_plus_stroke
WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov


action_zoom_plus_stroke
  • Device Installation
  • Communication Port Wiring
  • AS-P Servers
  • Hardware Overview
