Hardware Installation

Hardware Installation


Products: AS-P
Functionalities: Hardware, I/NET
Product version: 7.0
5/31/2025

USB-485-INET Adapter

arrow1_rotationSafety Information arrow1_rotationTechnical Literature arrow1_rotationDimensions arrow1_rotationInstalling the Device arrow1_rotationConnecting the USB Cable arrow1_rotationConnecting the I/NET Controller LAN arrow1_rotationConfiguring the CLAN Address arrow1_rotationPart Numbers arrow1_rotationSpecifications arrow1_rotationAddendum - California Proposition 65 Warning Statement for California Residents

Part number: SXWUSBADP10001

Safety Information

Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by Schneider Electric for any consequences arising out of the use of this material.

Carefully read these instructions and all information relevant for this product before trying to install it. See the list of technical literature.

Technical Literature

  • SpaceLogic and EasyLogic - Hardware Installation System Guide, 04-XX001-XX-en

The technical literature and declarations of conformity can be accessed on the Schneider Electric extranet, ecoxpert.se.com. Contact your local Schneider Electric sales office for a hard copy of the documentation or for additional information.

Dimensions


action_zoom_plus_stroke

Installing the Device


action_zoom_plus_stroke

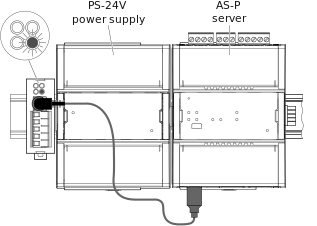

Connecting the USB Cable

Notice

LOSS OF COMMUNICATION

  • Use only the USB cable delivered with the adapter.

  • Do not use a cable that exceeds the provided 300 mm (12 inches) length.

Failure to follow these instructions can result in loss of communication.


action_zoom_plus_stroke

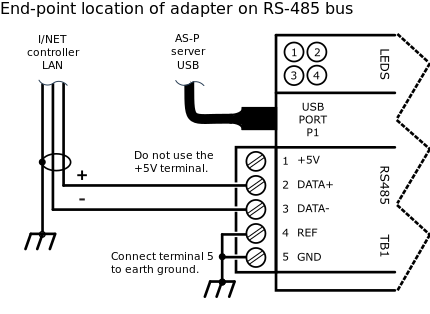

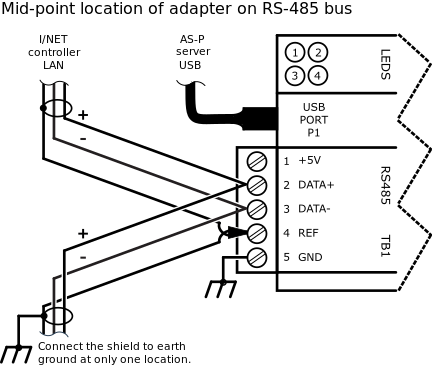

Connecting the I/NET Controller LAN

Notice

EQUIPMENT DAMAGE OR MALFUNCTION

Connect terminal 5 to earth ground to avoid transient currents or voltages.

Failure to follow these instructions can result in equiment damage or malfunction.


action_zoom_plus_stroke


action_zoom_plus_stroke

Configuring the CLAN Address

  • Configure the CLAN address using WorkStation.

  • Disconnect the USB cable from the AS-P server.

  • Connect the USB cable again.

Part Numbers

Product

Part number

USB-485-INET adapter

SXWUSBADP10001

Specifications

DC input
Current consumption
0.1 A to 0.3 A at 5 VDC (USB 2.0)
Port types
USB port
USB 2.0, type-B connector
RS-485 LAN port
Isolated interface, failsafe transceiver
Operation environment
Ambient temperature, operating
0 to 50 °C (32 to 122 °F)
Humidity
Maximum 95 % RH non-condensing
Mechanical
Ingress protection rating
IP 20
Plastic flame rating
UL94 V-0

Addendum - California Proposition 65 Warning Statement for California Residents


action_zoom_plus_stroke
WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
