User Interface

User Interface


Products: Operator Display
Functionalities: Engineering, BACnet/IP devices
Product version: 3.3, 2022, 2023, 2024
7/22/2021

Device Discovery Screen

Use the Device Discovery screen to discover devices on the network and them to the device list.

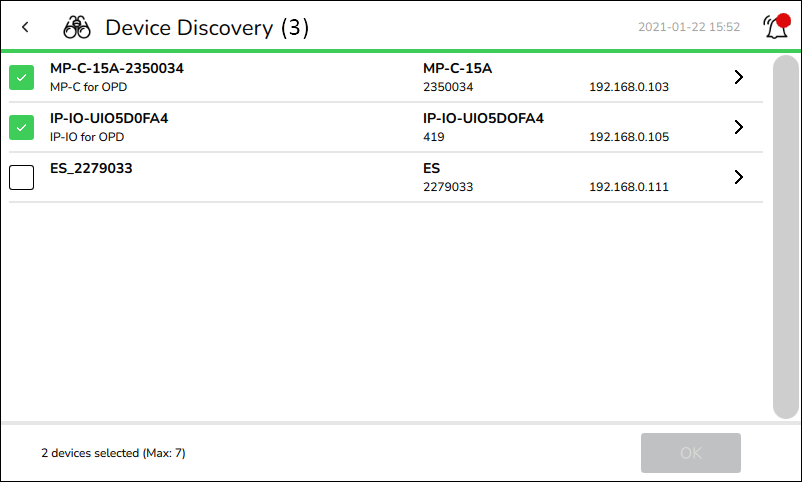

action_zoom_plus_stroke Device Discovery screen

Device Discovery screen

Table: Device Discovery Screen

Component

Description


action_zoom_plus_stroke

Indicates that a device is already added to the device list or a selected device.


action_zoom_plus_stroke

Indicates an available device that is not added to the device list or selected.


action_zoom_plus_stroke

Tap to select and open the device discovery detail screen, where you view more information on the device. For more information, see Device Detail Screen (without Configuration Menus) .

  • Device Detail Screen (without Configuration Menus)
