Central IO Modules v2
The second-generation (v2) Central IO modules feature several enhancements over the first-generation models, including faster processor performance and higher-resolution A/D converters for universal inputs. Additionally, the v2 module design has been updated to better align with the DIN 43880 standard by removing the previously high shoulder height. By adding a variety of Central IO and power supply modules, you can use the AS-P server to tailor the Intelligent Building Management System to your unique requirements.
Power and communications are delivered to the automation server and its family of Central IO modules in a common bus, thus allowing them to be plugged together without tools. This simple one-step process involves sliding the modules together using their built-in connectors.
The available Central IO modules are designed to accommodate a fixed number of inputs and outputs. For example, several Central IO modules, such as digital inputs, only support a single electrical type. Other modules, such as digital inputs mixed with digital outputs, support a combination of electrical types. The various modules enable you to select the right combination of points necessary for your project.
The Central IO modules are based on the patented two-piece design. Each Central IO module consists of an electronics module and a terminal base.
Electronics Modules
The electronics module is the main component of SpaceLogic devices that are based on the patented two-piece design. The electronics module is installed on a terminal base, which constitutes the second component of the device.
Mer information finns i Electronics Modules .
Terminal Bases
The terminal bases are used for SpaceLogic devices that are based on the patented two-piece design. The terminal base provides the I/O bus to the electronics module installed on the terminal base as well as to the SpaceLogic device installed to the right (next terminal base in the chain).
Mer information finns i Terminal Bases .
Central IO Module LEDs
The Central IO modules have the following status indicator LEDs on the front of the module:
I/O Module Status LED
I/O Channel Status LEDs
Mer information finns i Central IO Module LEDs .
Override Switches and Potentiometers
For Central IO modules with outputs, the following components on the front provide control of the output channels:
Override switches
Potentiometers
Mer information finns i Override Switches and Potentiometers .
External Device Connections
There are many different kinds of external devices from different vendors that can be connected to an EcoStruxure BMS.
Mer information finns i External Device Connections .
Grounding and Power
It is important to perform the grounding correctly for the following reasons:
To design a system that is not harmed by detected minor connection errors.
To design a system that works well and is resistant to EMI.
To minimize the effects of ground currents that can cause unstable measurements.
Mer information finns i Grounding and Power .
Mixed Modules v2

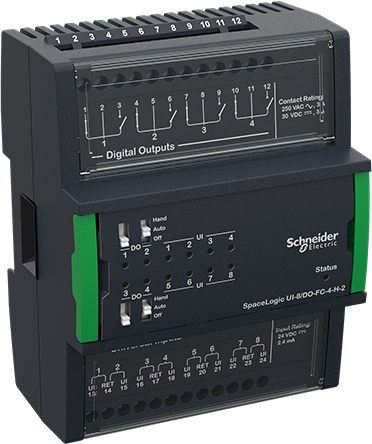

Mixed modules support a combination of electrical types, such as universal inputs mixed with digital or analog outputs. The available second version (v2) mixed modules include the following:
UI-8/DO-FC-4-2 and UI-8/DO-FC-4-H-2
UI-8/AO-4-2 and UI-8/AO-4-H-2
UI-8/AO-V-4-2 and UI-8/AO-V-4-H-2
Mer information finns i Mixed Modules v2 .
