AS-P-3 Server LEDs

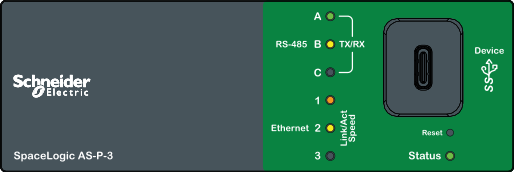

There are several LEDs on the front panel of an AS-P-3 server.

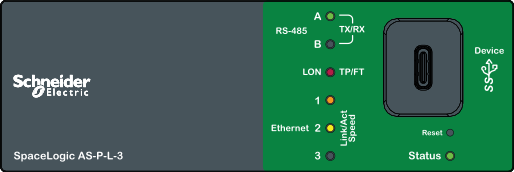

The AS-P-3 server comes in two different models, AS-P-3 and AS-P-L-3. Both models have seven LEDs.
|
Function |
Color |
|
RS-485 A, TX/RX |
Yellow/Green |
|
RS-485 B, TX/RX |
Yellow/Green |
|
RS-485 C, TX/RX a or LON, TP/FT b |
Yellow/Green or Red |
|
Ethernet 1, Link/Act/Speed |
Green/Yellow/Orange |
|
Ethernet 2, Link/Act/Speed |
Green/Yellow |
|
Ethernet 3, Link/Act/Speed |
Green/Yellow |
|
Status (AS-P-3 server) |
Green/Red |
- Only available on the AS-P-3 model.
- Only available on the AS-P-L-3 model.
The RS-485, LON, Ethernet 2 and 3, and Status indicators comprise two LEDs (green/yellow and green/red respectively) in one structure. Normally, when one LED is lit, the other is not lit and vice versa, that is, the indicator will show one color at a time.
The LEDs indicate status of the device and the ongoing communication.
Status LED
The AS-P-3 server Status LED indicates the condition of the device.
|
LED Patterns |
Condition |
|
Green, constant |
Normal operation, status OK |
|
Green, flashing |
Device starting, wait |
|
Red/green, flashing (~1 Hz) |
Device firmware upgrade (DFU) mode or firmware being downloaded in DFU mode |
|
Red, flashing (~1 Hz) |
Device operates, but a problem needs attention |
|
Red, constant |
Detected error, attention required |
|
No light |
No input power |
RS-485 LEDs
The RS-485 LEDs indicate the condition of the RS-485 communication.
|
LED Patterns |
Condition |
|
Yellow, flashing |
Transmit data (TX) |
|
Green, flashing |
Receive data (RX) |
Ethernet LEDs
The Ethernet LEDs indicate the condition of the Ethernet communication.
|
LED Patterns |
Condition |
|
Green, constant |
10 Mbit communication a , link established |
|
Green, flashing |
10 Mbit communication a , activity on the port |
|
Yellow, constant |
100 Mbit communication a , link established |
|
Yellow, flashing |
100 Mbit communication a , activity on the port |
|
Orange (amber), constant |
1000 Mbit communication a , link established |
|
Orange (amber), flashing |
1000 Mbit communication a , activity on the port |
- Ethernet 1 supports 10/100/1000 Mbit communication. Ethernet 2 and 3 support 10/100 Mbit communication.
LON LED
The LON LED indicates the condition of the LonWorks TP/FT communication.
|
LED Patterns |
Condition |
|
Red, constant |
Detected error, attention required |
|
Red, flashing (~1 Hz) |
Non-configured node, attention required |
|
No light |
Normal operation, status OK |
Only the AS-P-L-3 model has a LON LED.
