Hardware Installation
SpaceLogic™ RP-C-EXT-BL-2-LV-PD and RP-C-EXT-BL-4-HV-PD
Safety Information
Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by Schneider Electric for any consequences arising out of the use of this material.
Carefully read these instructions and all information relevant for this product before trying to install it. See the list of technical literature.
Technical Literature
SpaceLogic and EasyLogic - Hardware Installation System Guide, 04-XX001-XX-en
The technical literature and declarations of conformity can be accessed on the Schneider Electric extranet, ecoxpert.se.com. Contact your local Schneider Electric sales office for a hard copy of the documentation or for additional information.
Connections
Danger
|
|---|
|
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH Turn off all power connected to this equipment before working on the equipment. Failure to follow these instructions will result in death or serious injury. |
Wiring
For information on wiring, see the SpaceLogic and EasyLogic - Hardware Installation System Guide.
Part Numbers
|
Product |
Part number |
|
RP-C-EXT-BL-2-LV-PD
|
SXWREB2LVPD10001
|
|
RP-C-EXT-BL-4-HV-PD
|
SXWREB4HVPD10001
|
|
DIN-rail end clip, 25 pieces |
SXWDINEND10001 |
|
Mounting plate - RP controller expansion modules, 5 pieces |
SXWREMPK510001
|
Required External Connectors
|
Use |
Part number |
Reference |
Connector type |
Suitable for cable diameters mm (inches) |
Marking |
Color of coding /housing |
Minimum order quantity |
|
Power supply input |
SXWRPCCONWWPOW |
91.931.4053.1 |
Female |
5.6–11 (0.22–0.43) |
L, PE, N |
Black /Black |
100 |
|
Blind outputs (RP-C-EXT-BL-2-LV-PD) |
SXWRPCCONWBLLV |
91.952.4353.0 |
Male |
8.5–12.5 (0.34–0.49) |
5, 4, 3, 2, 1 5, 4, 3: Not used 2: M- 1: M+ |
Light blue /White |
50 |
|
Blind outputs (RP-C-EXT-BL-4-HV-PD) |
SXWRPCCONWBLHV |
91.942.4053.1 |
Male |
8.5–12.5 (0.34–0.49) |
N, PE, 1, 2 1: ↑ (UP) 2: ↓ (DOWN) |
Black /Black |
50 |
|
Digital inputs |
SXWRPCCONWDI |
91.921.2353.0 |
Female |
3.4–5.5 (0.14–0.21) |
1, 2 1: DI1..4 2: RET |
Light blue /White |
100 |
The external connectors need to be ordered separately. The connectors can be ordered in quantities of 50 or 100 from Schneider Electric using the above part numbers. The connectors can also be ordered directly from Wieland using the above reference numbers. For more information, see the Wieland Electric web site.
Specifications
| AC input | |
Nominal voltage
|
230 VAC
|
Power consumption
|
75 VA (RP-C-EXT-BL-2-LV-PD)
|
Maximum current consumption
|
8 A (RP-C-EXT-BL-4-HV-PD)
|
Overvoltage category
|
III
|
| DC input | |
Room bus power consumption
|
0.3 W (24 VDC)
|
| Port types | |
Room bus
|
RS-485
|
Dual RJ45 ports for daisy-chain configurations
|
|
| Operation environment, RP-C-EXT-BL-2-LV-PD | |
Ambient temperature, operating
|
0 to 40 °C (32 to 104 °F)
|

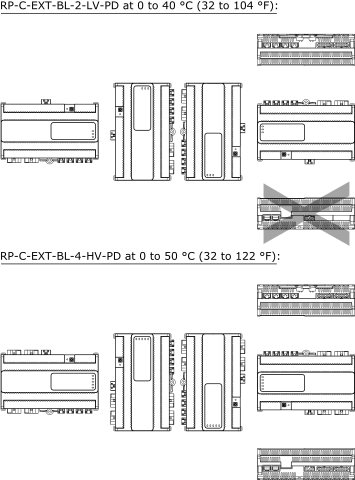

See section Installation Orientation Restrictions.
|
|
Humidity
|
20 to 90 % RH non-condensing
|
Pollution degree
|
2
|
| Operation environment, RP-C-EXT-BL-4-HV-PD | |
Ambient temperature, operating
|
0 to 50 °C (32 to 122 °F)
|
Humidity
|
20 to 90 % RH non-condensing
|
Pollution degree
|
2
|
| Mechanical | |
Ingress protection rating
|
IP 20
|
Plastic flame rating
|
UL94 V-0
|
| Blind outputs, RP-C-EXT-BL-2-LV-PD | |
Outputs
|
2, Blind 1 to Blind 2
|
M+
|
|
M-
|
|
Power distribution
|
24 VDC
|
Maximum 1 A load per output
|
|
Maximum 1.3 A total load for the 2 outputs
|
|
Maximum 2 A starting current (<100 ms) per output
|
|
| Blind outputs, RP-C-EXT-BL-4-HV-PD | |
Outputs
|
4, Blind 1 to Blind 4
|
↑ : Blind UP
|
|
↓ : Blind DOWN
|
|
Power distribution
|
230 VAC (same voltage as power supply)
|
Maximum 2 A load per output
|
|
Maximum 8 A total load for the 4 outputs
|
|
| DI – Digital inputs | |
Input rating
|
5 VDC
|
Inputs
|
4
|

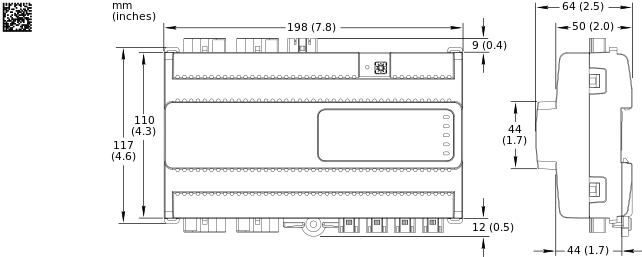

RP Controller Expansion Module Device Installation
I/O Wiring
Communication Port Wiring

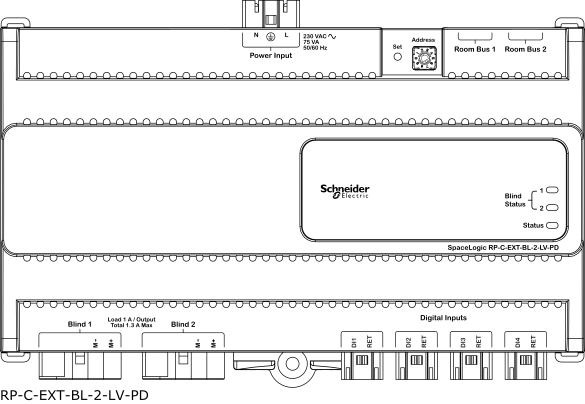

RP-C-EXT-BL-2-LV-PD

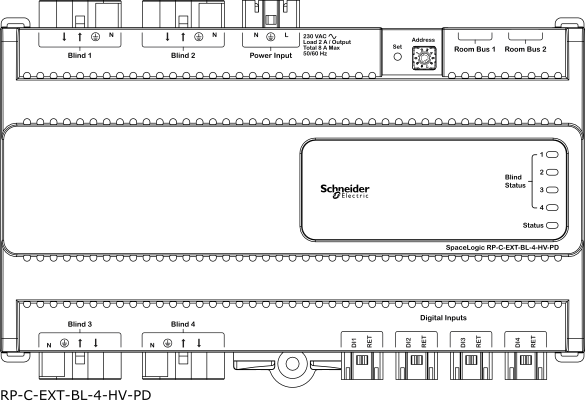

RP-C-EXT-BL-4-HV-PD
Hardware Overview
