Hardware Installation

Hardware Installation


Products: AD v3
Functionalities: Hardware
Product version: 3.3, 2022, 2023, 2024
10/7/2024

SpaceLogic™ AD v3

arrow1_rotationSafety Information arrow1_rotationTechnical Literature arrow1_rotationMaking the Holes in a Cabinet arrow1_rotationInstalling AD v3 on a Cabinet arrow1_rotationConnecting the Earth Ground Wire arrow1_rotationConnecting the AD v3 Cable arrow1_rotationConnecting AD v3 to an Automation Server and a 24 VAC or 24 VDC Power Supply arrow1_rotationConfiguring Kiosk Mode arrow1_rotationPart Numbers arrow1_rotationSpecifications arrow1_rotationAddendum - California Proposition 65 Warning Statement for California Residents

Part number: SXWADBUND10013

Safety Information

Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by Schneider Electric for any consequences arising out of the use of this material.

Carefully read these instructions and all information relevant for this product before trying to install it. See the list of technical literature.

Technical Literature

  • SpaceLogic and EasyLogic - Hardware Reference Guide, 04-XX001-XX-en

The technical literature and declarations of conformity can be accessed on the Schneider Electric extranet, ecoxpert.se.com. Contact your local Schneider Electric sales office for a hard copy of the documentation or for additional information.

Making the Holes in a Cabinet


action_zoom_plus_stroke

Installing AD v3 on a Cabinet


action_zoom_plus_stroke

Connecting the Earth Ground Wire


action_zoom_plus_stroke

Connecting the AD v3 Cable


action_zoom_plus_stroke

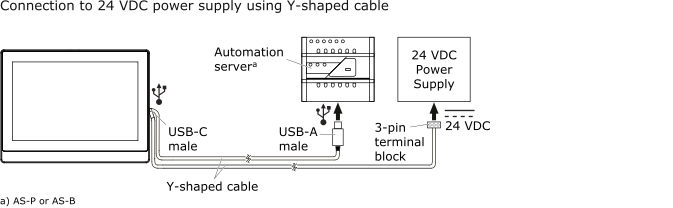

Connecting AD v3 to an Automation Server and a 24 VAC or 24 VDC Power Supply

Notice

EQUIPMENT DAMAGE

  • Always use the Y-shaped cable with USB isolation (SXWADUSBC10012 or SXWADUSBC10013) when connecting AD v3 to 24 VAC.

  • Do not use the Y-shaped cable to power any USB devices other than AD v3.

Failure to follow these instructions can result in equipment damage.


action_zoom_plus_stroke

Note:

The Y-shaped cable with part number SXWADUSBC10002 or SXWADUSBC10003 can only be used to connect AD v3 to 24 VDC.

Configuring Kiosk Mode

  • Press the AD v3 power button.

  • From the Home screen, tap the HMI Kiosk icon.

  • Enter a password to be used for HMI Kiosk and tap Submit .

    • The password must be at least 12 characters long and include an uppercase character, a lowercase character, a digit, and a symbol. To use a shorter password, tap Use a 6-character password .

    • Each device should be configured with a strong and unique password. Do not reuse the password for multiple devices.

    • Remember the password as there is no recovery key.

  • Change the WebStation address, if required.

  • Configure the screen timeout, if required.

  • Select the WebStation shortcut to run in Kiosk mode.

  • Tap Lock & Launch .

Part Numbers

Device

Part number

AD v3 bundle
SXWADBUND10013
AD v3 cable with USB isolation, Y-shaped, 1.35 m (4.43 ft)
SXWADUSBC10012
AD v3 cable with USB isolation, Y-shaped, 2.85 m (9.35 ft)
SXWADUSBC10013
AD v3 cable, Y-shaped, 1.35 m (4.43 ft)
SXWADUSBC10002
AD v3 cable, Y-shaped, 2.85 m (9.35 ft)
SXWADUSBC10003

Specifications

Power input
Nominal voltage
24 VAC

action_zoom_plus_stroke
50/60 Hz

24 VDC

action_zoom_plus_stroke

20 VDC (USB-C)

action_zoom_plus_stroke

15 VDC (USB-C)

action_zoom_plus_stroke

For information on the use of 15 VDC or 20 VDC USB-C power supply to power AD v3, contact Schneider Electric.
Typical example of 24 VDC power supply
ABLM1A24012 (Schneider Electric)
Recommended USB power supply ratings
20 VDC, 1 A (20 W)

15 VDC, 1.5 A (22.5 W)
Power consumption
19.9 VA (0.83 A at 24 VAC)

17.5 W (0.73 A at 24 VDC)

17.8 W (0.89 A at 20 VDC)

19.4 W (1.29 A at 15 VDC)
Operation environment
Ambient temperature, operating
0 to 40 °C (32 to 104 °F)
Humidity
Maximum 95 % RH non-condensing
Mechanical
Ingress protection rating
IP 54
Plastic flame rating
UL94 V-0
Dimensions (W x H x D)
258 x 195.6 x 25 mm (10.2 x 7.7 x 1.0 in.)
Weight (excluding nut)
0.933 kg (2.056 lb)

Addendum - California Proposition 65 Warning Statement for California Residents

For the AD v3 bundle, the following warning statement applies:


action_zoom_plus_stroke
WARNING: This product can expose you to chemicals including lead and Diisononyl phthalate (DINP), which are known to the State of California to cause cancer, and lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

For the AD v3 cables, the following warning statement applies:


action_zoom_plus_stroke
WARNING: This product can expose you to chemicals including Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
