Hardware Installation

Hardware Installation


Products: RP-V
Functionalities: Hardware
Product version: 2022, 2023, 2024, 7.0
7/8/2025

SpaceLogic™ RP-V

arrow1_rotationSafety Information arrow1_rotationTechnical Literature arrow1_rotationDimensions arrow1_rotationInstallation Orientations arrow1_rotationDetermining the Shaft Rotation Direction that Opens the Damper arrow1_rotationDetermining the Damper Shaft Length and Diameter arrow1_rotationMoving the Damper Shaft Mounting Screws to the Alternative Positions for Short Shafts Only arrow1_rotationInstalling the RP-V over the Damper Shaft arrow1_rotationSecuring the RP-V to the Damper Shaft and the VAV Box arrow1_rotationAdjusting the Position of the CW Travel Adjustment Screw (Open CW Stop) arrow1_rotationConnecting the Air Flow Sensor arrow1_rotationConnections arrow1_rotationWiring arrow1_rotationPart Numbers arrow1_rotationSpecifications arrow1_rotationAddendum - California Proposition 65 Warning Statement for California Residents

Part numbers: SXWRPV4A10001 and SXWRPV5A10001

Safety Information

Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by Schneider Electric for any consequences arising out of the use of this material.

Carefully read these instructions and all information relevant for this product before trying to install it. See the list of technical literature.

Technical Literature

  • SpaceLogic and EasyLogic - Hardware Installation System Guide, 04-XX001-XX-en

The technical literature and declarations of conformity can be accessed on the Schneider Electric extranet, ecoxpert.se.com. Contact your local Schneider Electric sales office for a hard copy of the documentation or for additional information.

Dimensions


action_zoom_plus_stroke

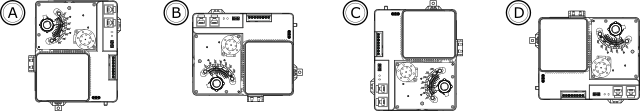

Installation Orientations


action_zoom_plus_stroke

Determining the Shaft Rotation Direction that Opens the Damper


action_zoom_plus_stroke

Determining the Damper Shaft Length and Diameter


action_zoom_plus_stroke

Moving the Damper Shaft Mounting Screws to the Alternative Positions for Short Shafts Only


action_zoom_plus_stroke

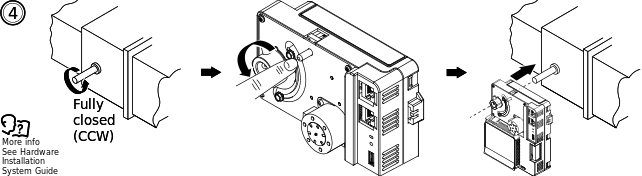

Installing the RP-V over the Damper Shaft


action_zoom_plus_stroke

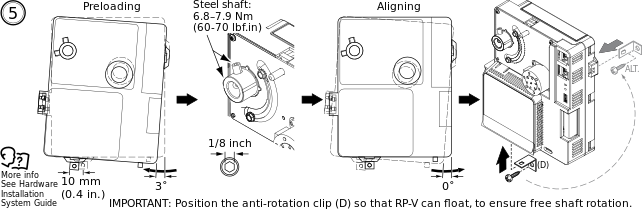

Securing the RP-V to the Damper Shaft and the VAV Box


action_zoom_plus_stroke

Adjusting the Position of the CW Travel Adjustment Screw (Open CW Stop)

Notice

VAV DAMPER NOT PROPERLY CONTROLLED

Ensure that the VAV controller damper actuator can rotate freely between the fully open and fully closed positions.

Failure to follow these instructions can result in the VAV damper not being properly controlled by the controller.


action_zoom_plus_stroke

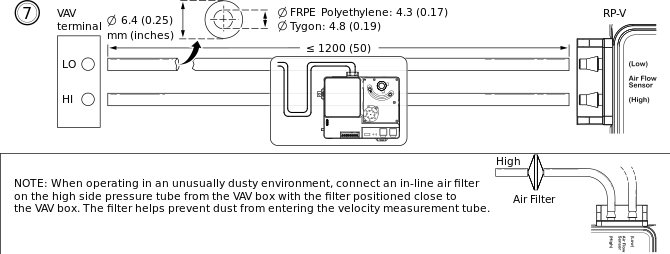

Connecting the Air Flow Sensor

Notice

AIR FLOW SENSOR DAMAGE

Create a tubing dip that extends below the elevation of the barbed fittings to help prevent moisture from entering the VAV controller. This applies to all controller orientations.

Failure to follow these instructions can result in equipment damage.


action_zoom_plus_stroke

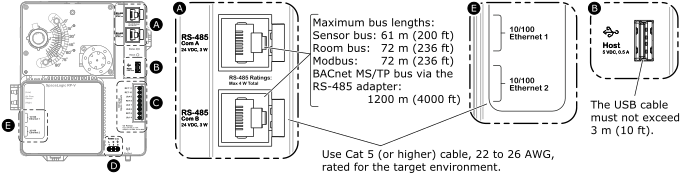

Connections

Notice

CONTROLLER DAMAGE OR VAV DAMPER NOT PROPERLY CONTROLLED

  • Before powering up the controller, ensure that the input power polarity is correct and that the voltage level meets the specifications of the controller.

  • Ensure that the controller is properly installed and secured before the application of 24 VAC power and the damper position calibration that starts automatically with it.

Failure to follow these instructions can result in equipment damage or the VAV damper not being properly controlled by the controller.


action_zoom_plus_stroke

action_zoom_plus_stroke

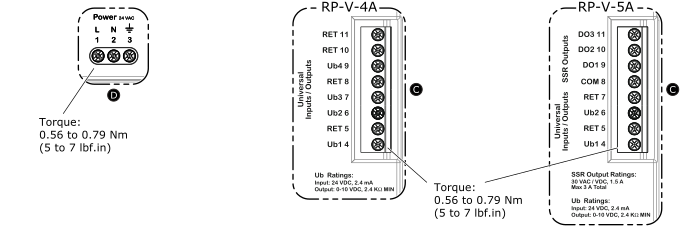

Wiring

Recommended screw tightening torque: 0.56 to 0.79 Nm (5 to 7 lbf.in)

For information on wiring, see the SpaceLogic and EasyLogic - Hardware Installation System Guide.

Part Numbers

Product

Part number

RP-V-4A
SXWRPV4A10001
RP-V-5A
SXWRPV5A10001

Adapter for damper shaft diameter 9.5 mm (3/8 inch)

AM-135

Isolated RS-485 adapter (cable not included)
SXWISORS48510001
Non-isolated RS-485 adapter (cable not included)
SXWNISORS48510001
RS-485 power adapter (cable not included)
SXWNISORS485P10001

For more information on the RS-485 adapters and the cable required, see the RS-485 Adapter and RS-485 Power Adapter Installation Sheets.

Specifications

AC input
Nominal voltage
24 VAC

action_zoom_plus_stroke
50/60 Hz
Power consumption
18 VA
Port types
USB host port
Type-A, 5 VDC, 0.5 A
Ethernet port 1 and 2
10/100BASE-TX (RJ45), IEEE 802.3 compliant
RS-485 Com A and Com B
24 VDC, 3 W, RS-485 (RJ45)

Max. 4 W total load
Wireless connectivity
Bluetooth ® Low Energy (Bluetooth ® 5)
2.402 to 2.480 GHz, max. 10 dBm output power, 100 m (328 ft) line-of-sight range
Antenna
Integrated antenna
Approved external antenna (optional)
Manufacturer: Linx Technologies, Model: ANT-2.4-WRT-MON-SMA, Gain: 0.8 dBi, Type: Monopole, Impedance: 50 ohm, Connector: SMA
Operation environment
Ambient temperature, operating
0 to 50 °C (32 to 122 °F)
Humidity
Maximum 95 % RH non-condensing
Mechanical
Ingress protection rating
IP 20
Plastic flame rating
UL94 V-0
Plenum rating
UL 2043 (Approved for plenum installations)
IP networking
IP address assignment methods
Static, DHCP (default), Auto-IP (address range 169.254.0.1 to 169.254.255.254, subnet mask 255.255.0.0)
Ub – Universal I/O
Input rating
24 VDC

action_zoom_plus_stroke
, 2.4 mA
Voltage output rating
0 to 10 VDC

action_zoom_plus_stroke
, 2.4 kohm (min.)
Channels
RP-V-4A: 4; RP-V-5A: 2
DO – Solid-state relay outputs
Output rating
30 VAC

action_zoom_plus_stroke
/ 30 VDC

action_zoom_plus_stroke
, 1.5 A

Max. 3 A total load
Channels
RP-V-4A: 0; RP-V-5A: 3

Addendum - California Proposition 65 Warning Statement for California Residents


action_zoom_plus_stroke
WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov


action_zoom_plus_stroke
