Hardware Installation

Hardware Installation


Products: RP-C
Functionalities: Hardware
Product version: 2022, 2023, 2024, 7.0
8/22/2023

SpaceLogic™ RP-C 24 V

arrow1_rotationSafety Information arrow1_rotationTechnical Literature arrow1_rotationDimensions arrow1_rotationInstallation Orientation Restrictions arrow1_rotationInstalling the Device on a DIN Rail arrow1_rotationInstalling the Device on a Flat Surface arrow1_rotationInstalling and Removing the Optional Covers arrow1_rotationConnections arrow1_rotationWiring arrow1_rotationPart Numbers arrow1_rotationSpecifications arrow1_rotationDifferences from Previous Hardware Versions arrow1_rotationAddendum - California Proposition 65 Warning Statement for California Residents

Part numbers: SXWRCF12A10002, SXWRCF12B10002, SXWRCF12C10002, and SXWRCF16B10001

Safety Information

Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by Schneider Electric for any consequences arising out of the use of this material.

Carefully read these instructions and all information relevant for this product before trying to install it. See the list of technical literature.

Technical Literature

  • SpaceLogic and EasyLogic - Hardware Reference Guide, 04-XX001-XX-en

The technical literature and declarations of conformity can be accessed on the Schneider Electric extranet, ecoxpert.se.com. Contact your local Schneider Electric sales office for a hard copy of the documentation or for additional information.

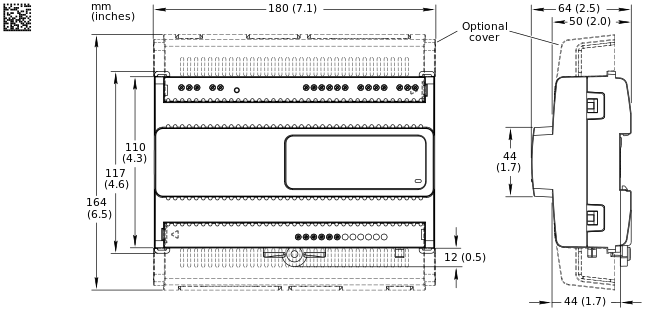

Dimensions


action_zoom_plus_stroke

Installation Orientation Restrictions


action_zoom_plus_stroke

Installing the Device on a DIN Rail

Notice

CONTROLLER DAMAGE

Use the DIN rail end clip when you install the controller on a vertical DIN rail.

Failure to follow these instructions can result in equipment damage.


action_zoom_plus_stroke

Installing the Device on a Flat Surface


action_zoom_plus_stroke

Installing and Removing the Optional Covers


action_zoom_plus_stroke

Connections

Danger Danger

HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH

  • Disconnect all line voltage connected to the controller and its relay outputs before working on the device.

  • More than one disconnect switch may be required to de-energize this equipment before servicing.

  • Connect only devices with safe extra low voltage equipment (SELV/PELV) inputs/outputs to the controller universal inputs/outputs.

Failure to follow these instructions will result in death or serious injury.

Notice

CONTROLLER DAMAGE

Before powering up RP-C, ensure that the input power polarity is correct and that the voltage level meets the specifications of the controller.

Failure to follow these instructions can result in equipment damage.

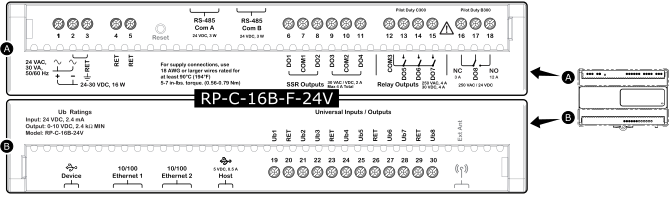

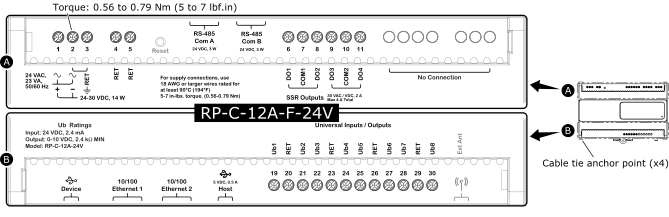

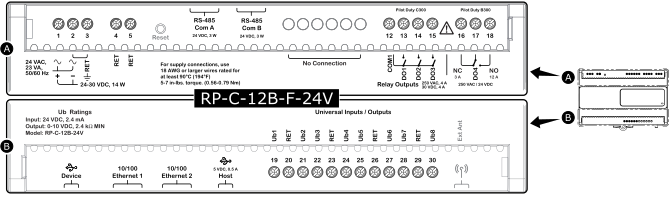

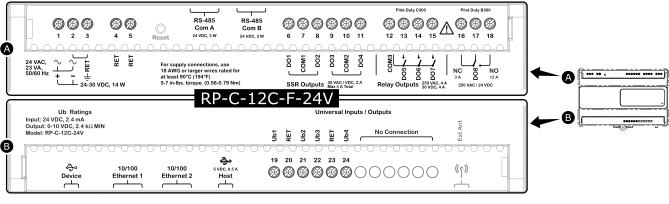

action_zoom_plus_stroke

action_zoom_plus_stroke

action_zoom_plus_stroke

action_zoom_plus_stroke

Wiring

Recommended screw tightening torque: 0.56 to 0.79 Nm (5 to 7 lbf.in)

For information on wiring, see the SpaceLogic and EasyLogic - Hardware Reference Guide.

Part Numbers

Product

Part number

RP-C-12A-F-24V
SXWRCF12A10002
RP-C-12B-F-24V
SXWRCF12B10002
RP-C-12C-F-24V
SXWRCF12C10002
RP-C-16B-F-24V
SXWRCF16B10001
Optional covers
SXWRPCCOV10001

DIN-rail end clip, 25 pieces

SXWDINEND10001

Isolated RS-485 adapter (cable not included)
SXWISORS48510001
Non-isolated RS-485 adapter (cable not included)
SXWNISORS48510001
RS-485 power adapter (cable not included)
SXWNISORS485P10001

For more information on the RS-485 adapters and the cable required, see the RS-485 Adapter and RS-485 Power Adapter Installation Sheets.

Specifications

AC input
Nominal voltage
24 VAC

action_zoom_plus_stroke
50/60 Hz
Power consumption
RP-C-12A: 23 VA; -12B: 23 VA; -12C: 23 VA; -16B: 30 VA
DC input
Nominal voltage
24 to 30 VDC

action_zoom_plus_stroke
Power consumption
RP-C-12A: 14 W; -12B: 14 W; -12C: 14 W; -16B: 16 W
Port types
USB device port
Mini-B
USB host port
Type-A, 5 VDC, 0.5 A
Ethernet port 1 and 2
10/100BASE-TX RJ45
RS-485 port Com A and Com B
24 VDC, 3 W, RS-485 (RJ45)
Wireless connectivity
Bluetooth ® Low Energy (Bluetooth ® 5)
2.402 to 2.480 GHz, max. 10 dBm output power, 100 m (328 ft) line-of-sight range
Antenna
Integrated antenna
Approved external antenna (optional)
Manufacturer: Linx Technologies, Model: ANT-2.4-WRT-MON-SMA, Gain: 0.8 dBi, Type: Monopole, Impedance: 50 ohm, Connector: SMA
Operation environment
Ambient temperature, operating
0 to 50 °C (32 to 122 °F) at normal operation

-40 to +60 °C (-40 to +140 °F) for rooftop applications, horizontal installation only

See section Installation Orientation Restrictions.
Humidity
Maximum 95 % RH non-condensing
Mechanical
Ingress protection rating
IP 20
Plastic flame rating
UL94-5VB
Plenum rating
UL 2043 (Approved for plenum installations)
IP networking
IP address assignment methods
Static, DHCP (default), Auto-IP (address range 169.254.0.1 to 169.254.255.254, subnet mask 255.255.0.0)
Ub – Universal I/O
Input rating
24 VDC

action_zoom_plus_stroke
, 2.4 mA
Voltage output rating
0 to 10 VDC

action_zoom_plus_stroke
, 2.4 kohm (min.)
Channels
RP-C-12A: 8; -12B: 8; -12C: 4; -16B: 8
DO – Relay outputs
Relay contact rating
Pilot Duty (C300)

Min. current: 100 mA (5 VDC)

Resistive: 250 VAC

action_zoom_plus_stroke
/ 30 VDC

action_zoom_plus_stroke
,

4 A (cos phi = 1)

Inductive: 250 VAC

action_zoom_plus_stroke
/ 30 VDC

action_zoom_plus_stroke
,

4 A (cos phi = 0.4)
Channels
RP-C-12A: 0; -12B: 3; -12C: 3; -16B: 3
DO – High power relay outputs
Relay contact rating
Pilot Duty (B300)

Normally Open, resistive: 250 VAC

action_zoom_plus_stroke

/ 24 VDC

action_zoom_plus_stroke
, 12 A (cos phi = 1)

Normally Closed, inductive: 250 VAC

action_zoom_plus_stroke

/ 24 VDC

action_zoom_plus_stroke
, 3 A (cos phi = 0.4)
Channels
RP-C-12A: 0; -12B: 1; -12C: 1; -16B: 1
DO – Solid-state relay outputs
Output rating
30 VAC

action_zoom_plus_stroke
/ 30 VDC

action_zoom_plus_stroke
, 2 A

Max. 4 A total load
Channels
RP-C-12A: 4; -12B: 0; -12C: 4; -16B: 4

Differences from Previous Hardware Versions

For information on differences from previous versions, see the SpaceLogic and EasyLogic - Hardware Reference Guide.

Addendum - California Proposition 65 Warning Statement for California Residents


action_zoom_plus_stroke
WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
