UNM-SCH181810RC Enclosure

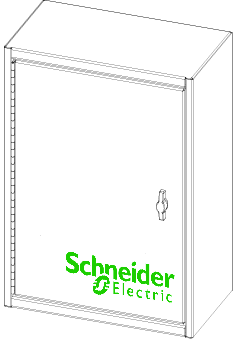

The UNM-SCH181810RC enclosure is a 10-inch deep box (254.00 mm) box with a continuous hinge, keyed door lock, compression latch, and a perforated back pane. It is designed for use with StruxureWare Building Operation components, such as Automation Servers, Power Supplies, and Input/Output modules.
The UNM-SCH181810RC enclosure does not feature DIN rails. However, you can fasten them with screws through the pre-drilled backplane. A keylock is provided for added security.

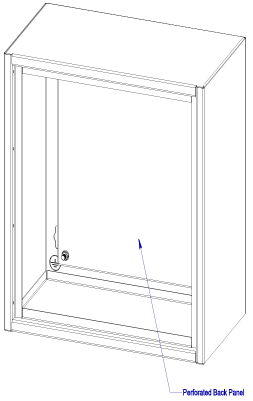

The following illustration shows the inside view of the enclosure.
As shown, the inside of the enclosure includes the perforated back panel.
Physical Dimensions
The following illustration shows the physical dimensions of the enclosure.
Mounting Dimensions

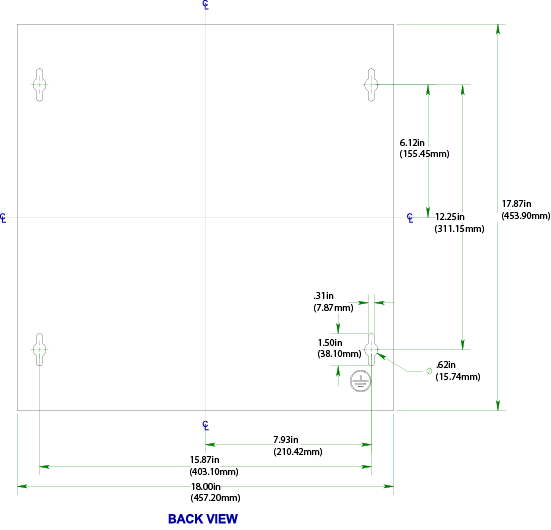

The following illustration shows the mounting dimensions of the enclosure.
