RP-C Models

The RP-C controller comes in six different models, which offer five different combinations (sets) of I/O point types and CPU types. Four of the RP-C controller models support 24 VAC/DC input power and two of the models support 230 VAC.

  • RP-C 24 V controller models:

    RP-C-12A-F-24V, RP-C-12B-F-24V, RP-C-12C-F-24V, and RP-C-16B-F-24V

  • RP-C 230 V controller models:

    RP-C-16A-F-230V and RP-C-16B-F-230V

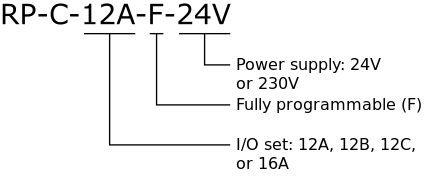

RP-C model number structure

RP-C model number structure

Range

Model

I/O–CPU Set

I/O Points

CPU Type

RAM / Flash Memory

Input Power

Advanced

RP-C-12A-F-24V

12A

12

ARM Cortex-A7 single-core

6 MB / 48 MB

24 VAC at 50/60 Hz or 24 to 30 VDC

Advanced

RP-C-12B-F-24V

12B

12

ARM Cortex-A7 single-core

6 MB / 48 MB

24 VAC at 50/60 Hz or 24 to 30 VDC

Advanced

RP-C-12C-F-24V

12C

12

ARM Cortex-A7 single-core

6 MB / 48 MB

24 VAC at 50/60 Hz or 24 to 30 VDC

Advanced

RP-C-16A-F-230V

16A

16

ARM Cortex-A7 single-core

6 MB / 48 MB

230 VAC at 50/60 Hz

Pro

RP-C-16B-F-24V

16B

16

ARM Cortex-A7 dual-core

128 MB / 64 MB

24 VAC at 50/60 Hz or 24 to 30 VDC

Pro

RP-C-16B-F-230V

16B

16

ARM Cortex-A7 dual-core

128 MB / 64 MB

230 VAC at 50/60 Hz

For more information, see RP-C Onboard I/O .

For more information, see RP-C Built-in Power Supply .

All RP-C models have the same small footprint.

Differences Between RP-C Hardware Versions

There are a number of differences in hardware between different hardware versions of the RP-C-12A-F-24V, RP-C-12B-F-24V, RP-C-12C-F-24V, and RP-C-16A-F-230V controller models.

For more information, see Differences Between RP-C Hardware Versions .
