Spezifikationen
SpaceLogic drahtloser Adapter – Advanced
Einleitung
Der SpaceLogic TM drahtlose Adapter - Advanced ist ein drahtloser Adapter auf USB-Basis, der eine drahtlose Zigbee TM -Konnektivität für Ihren SpaceLogic BACnet/IP-Controller oder Automation Server ermöglicht und so deren Punktanzahl erhöht und Ihre Nachrüstungsanwendungen flexibler gestaltet. Der Adapter kann mit BACnet/IP-Controllern, wie etwa den RP-Controllern, sowie Automation Servern wie den AS-P- und AS-B-Servern verwendet werden.
An automation server equipped with the adapter can communicate over the Zigbee wireless protocol with up to 164 wireless devices, depending on the type of Zigbee device and the radio bandwidth usage of the device. An RP controller equipped with the adapter can communicate with up to 30 wireless devices.
Weitere Informationen zu den unterstützten Drahtlosgeräten entnehmen Sie bitte dem Abschnitt „Unterstützte Drahtlosgeräte“.
Der Adapter erlaubt nachträgliche Inbetriebnahmeauswahl von einem der 16 Betriebskanäle im 2,4-GHz-Band, um die Signalübertragung und den Signalempfang zu verbessern.
The adapter works seamlessly within EcoStruxure Building Management systems so that Zigbee objects become easily available to the user.
The adapter’s compact design allows it to plug in to RP controllers or automation servers in tight spaces and the optional mounting cradle, wall plate, and USB cable extension allow for the choice of a wall, ceiling, or exterior of the enclosure mount to maximize the transmission and reception of signals from distributed Zigbee devices.
In WorkStation, the firmware of the adapter will be automatically updated when you update the RP controller or automation server to which it is connected.
Funktionen
Der Adapter weist folgende Funktionen auf:
Zigbee-zertifiziertes Produkt (mit RP-Controllern, AS-P und AS-B-Servern)
Zigbee 3.0
Kompaktes Design und einfache Installation
Mehrere Montageoptionen
Integrierte 2,4-GHz-Antenne
Reichweite der Drahtloskommunikation:
Sichtverbindungs-Reichweite: bis zu 50 m (164 ft)
Erlaubt Kanaländerung des Netzwerks nach der Inbetriebnahme
Konfiguration und Firmwareaktualisierung über die EcoStruxure Building Operation-Software
|
Produkt |
Artikelnummer |
|
SpaceLogic Wireless Adapter - Advanced
|
SXWZBAUSB10001
|
|
USB Adapter Cradle Kit Includes plastic mounting cradle and wall plate |
SXWUSBCRA10001
|
|
USB Extension Cable 1 m (3 ft) Includes USB extension cable of length 1 m (3 ft) |
SXWUSBCBL10001
|
|
Plenum Rated USB Extension Cable 3 m (10 ft) Includes plenum rated USB extension cable of length 3 m (10 ft) |
SXWUSBCBL10002
|
Spezifikationen
| Electrical | |
DC input supply voltage
|
5 VDC (USB)
a
|
| a) Anschluss an und Speisung durch den USB-2.0-Host-Port am RP-Controller oder Automation Server. | |
Maximum power consumption
|
0.3 W
|
| Wireless connectivity | |
Communication protocol
|
Zigbee 3.0
|
Frequency band
|
2.4 GHz (ISM band), compliant with IEEE Standard 802.15.4
|
Maximum output power
|
+10 dBm
|
Maximum communication distance
|
Line-of-sight: 50 m (164 ft)
|
Antenna
|
Integrated antenna
|
Maximum total number of hops allowed in the wireless network
|
5
|
| Wireless device limits for an RP controller | |
Maximum total number of wireless devices connected to the wireless network
|
Up to 30
a
|
| a) The maximum number depends on the type of Zigbee device and the radio bandwidth usage of the Zigbee device. | |
Maximum total number of SE8000 and VT8000 room controllers
|
4
|
Maximum total number of Zigbee end devices paired with an RP controller
|
20
|
Maximum total number of ASSA ABLOY VingCard electronic locks
|
1
|
| Wireless device limits for an automation server | |
Maximum total number of wireless devices connected to the wireless network
|
Up to 164
a
|
| a) The maximum number depends on the type of Zigbee device and the radio bandwidth usage of the Zigbee device. | |
Maximum total number of Zigbee routers and Zigbee end devices
|
64
|
Maximum total number of Zigbee Green Power devices
|
100
|
Maximum total number of Zigbee end devices paired with an automation server
|
20
|
| Environment | |
Ambient temperature, operating
|
0 to 50 °C (32 to 122 °F)
|
Ambient temperature, storage
|
-40 to +70 °C (-40 to +158 °F)
|
Humidity
|
Maximum 95 % RH non-condensing
|
| Material | |
Plastic flame rating
|
UL94 HB
|
Plenum rating
|
UL 2043
|
Ingress protection rating
|
IP 20
|
| Mechanical | |

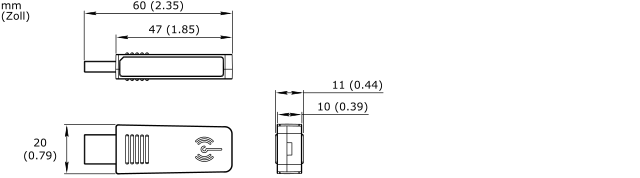

Abmessungen, Adapter
|
Siehe nachstehende Abbildung
|
|
|

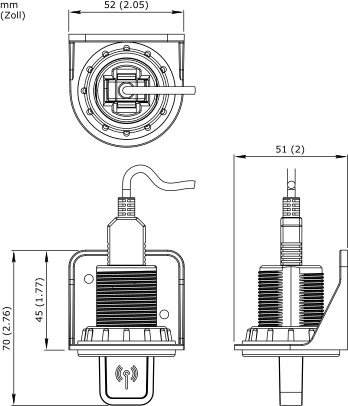

Abmessungen, Montagewanne und Wandplatte
|
Siehe nachstehende Abbildung
|
|
|
Weight
|
Adapter: 7.57 g (0.267 oz)
|
Cradle and nut: 21.35 g (0.753 oz)
|
|
Cradle, nut, and wall plate: 33.40 g (1.178 oz)
|
|
Installation
|
Connection to USB host port on RP controller or automation server
|
Indoor use only
|
|
Installation options
|
Enclosure exterior
|
Drop ceiling with mounting cradle (optional)
|
|
Wall with wall plate (optional)
|
|
Maximum USB 2.0 cable length
|
3 m (10 ft)
|
| Software requirements | |
EcoStruxure Building Operation software
|
version 3.2 and later
|
EcoStruxure Building Commission mobile application software
|
version 4.0 and later
|
RP-C controller firmware
|
Version 3.02 xx oder höher
|
AS-P server firmware
|
EcoStruxure Building Operation software version 3.2 and later
|
AS-B server firmware
|
EcoStruxure Building Operation software version 3.3 and later
|
| Agency compliances | |
EMC
|
EN 301 489-1 V2.2.3; EN 301 489-17 V3.2.2; BS/EN 55032:2015; BS/EN 55035:2017; FCC Part 15, Sub-part C, Class B; ICES-003, Class B
|
Radio
|
ETSI EN 300 328 V2.2.2
|
Safety standards
|
BS/EN 62368-1:2014; BS/EN 62311:2008; BS/EN 62479:2010
|
FCC ID
|
QOQ13
|
ISED certification number
|
IC: 5123A-13
|
| Hardware | |
CPU type
|
ARM Cortex-M4 with Floating Point Unit (FPU)
|
Frequency
|
38.4 MHz
|
SRAM (embedded)
|
64 KB
|
Flash memory (embedded)
|
512 KB
|
Connectors
|
USB 2.0, type-A connector
|
Unterstützte Drahlosgeräte
For information on the wireless devices that are supported by the wireless network, see the document SpaceLogic Wireless Connectivity – Advanced; Supported Devices.
The import files for supported wireless devices can be found in the Schneider Electric BMS Applications web portal ( bms-applications.schneider-electric.com ).
In EcoStruxure Building Operation software version 4.0 and later, additional Zigbee 3.0 wireless devices can be supported using the Zigbee Wireless Device Support Service. For information on how support for Zigbee 3.0 devices can be added in the EcoStruxure Building Operation software through this service, see the document PA-00842 - New Service for Zigbee Device Support in EBO.
