SpaceLogic RP-C-EXT-IS-BLE

Introduction

SpaceLogic™ RP-C-EXT-IS-BLE Insight-Sensor connects to the SpaceLogic RP controllers and is used for people counting, motion detection, and luminosity and sound level monitoring, and supports Bluetooth Low Energy based applications such as beaconing and remote control communication.

The Insight-Sensor provides real-time occupant information that enables immediate control of HVAC for optimized energy consumption and indoor environment, for example, by adapting the fan speed to occupancy level or turning off the lights when unoccupied.

The Insight-Sensor is connected to the RP controller using an RJ45 type quick connector.

The Insight-Sensor's three flexible mounting brackets (springs) enable quick and easy installation on a suspended ceiling tile. The Insight-Sensor also comes with a mounting ring, which allows the device to be installed in open ceiling applications.

The Insight-Sensor is part of the RP controller expansion modules product range. The Insight-Sensor can be combined with the RP controller expansion modules for lighting and blind control to provide a connected room solution.

Features

The SpaceLogic Insight-Sensor has the following features:

Power and communications through the room bus
People counting through thermal image sensor with software configurable detection areas
Motion detection through passive infrared sensor
Luminosity measurement through ambient light sensor
Sound pressure level measurement through an analog acoustic sensor, which enables monitoring of sound levels in both enclosed and open spaces
Temperature and humidity measurement provided for dew point calculation
Bluetooth Low Energy for beaconing applications such as indoor positioning - a service to be provided by third party

Beaconing follows standard iBeacon profile - compatible with multiple indoor positioning providers
Bluetooth Low Energy for wireless connection to RP-C-RC-BLE remote control
Status LED for the device
Rotary switch for address configuration

Room bus

The RP controller room bus allows RP controller expansion modules to be connected to the controller for people counting, motion detection, luminosity and sound pressure level measurements, Bluetooth Low Energy based applications, and control of electric lights and window blinds.

The RP-C Pro and RP-C Pro Plus controller room bus supports up to nine connected RP controller expansion modules with the following restrictions:

Maximum of two DALI light modules
Maximum of two SMI blind modules
Maximum of seven Multi-sensor or Insight-Sensor devices

The RP-C Advanced controller room bus supports up to six connected RP controller expansion modules with the following restrictions:

Maximum of two DALI light modules
Maximum of two SMI blind modules
Maximum of four Multi-sensor or Insight-Sensor devices

The RP-V Advanced controller room bus supports up to four connected RP controller expansion modules with the following restrictions:

Maximum of one DALI light module
Maximum of one SMI blind module
Maximum of two Multi-sensor or Insight-Sensor devices

Maximum total length of the room bus is 72 m (236 ft).

People counting

The thermal image sensor senses the heat radiation from each individual. The device applies advanced image processing to the thermal images, and the result is a people count number, which is periodically transmitted to the RP controller. The information from the device cannot be used to identify people.

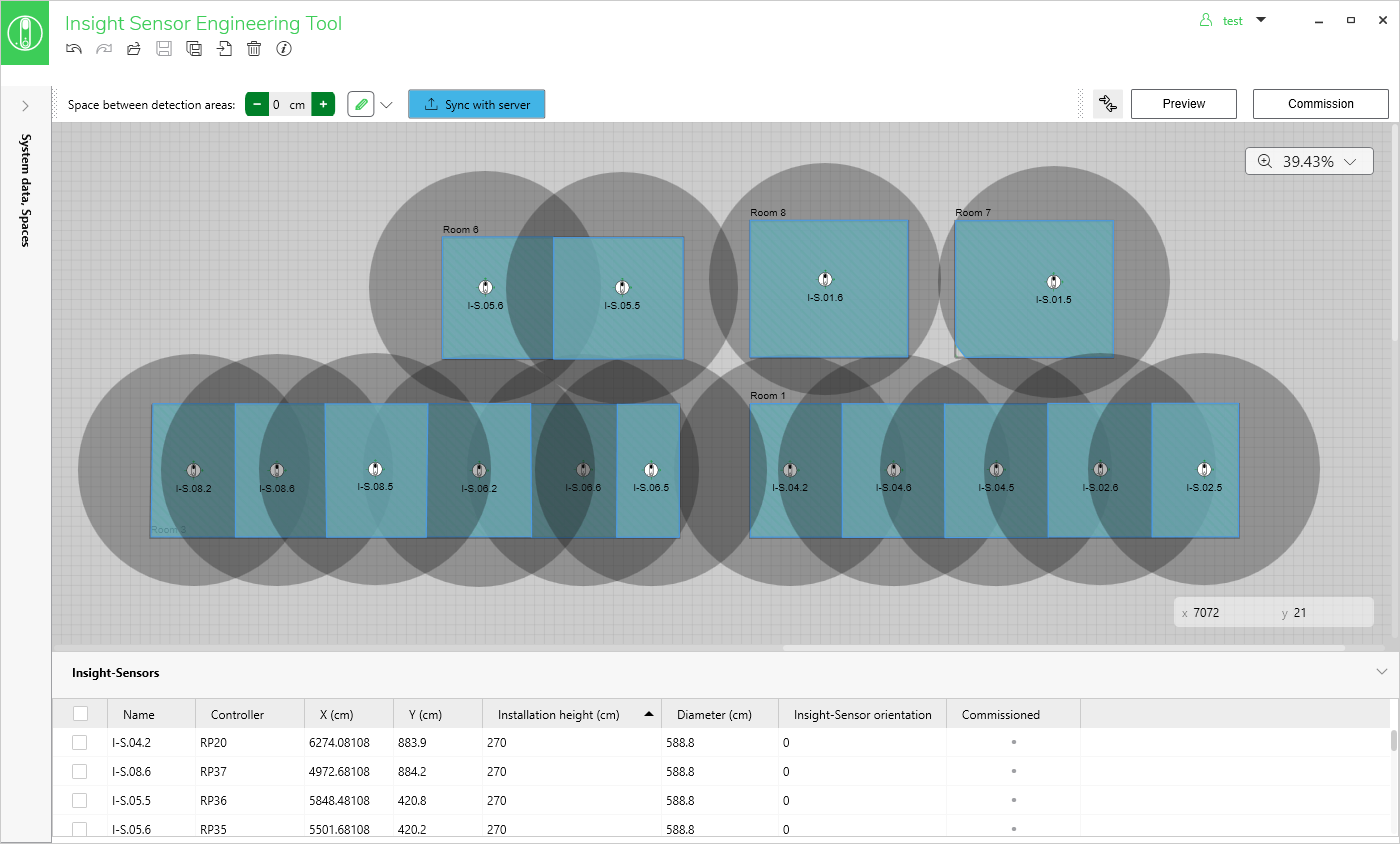

Using the EcoStruxure Building Operation software, the thermal image sensor's detection area can be configured to reduce overlapping areas between two devices to minimize the risk of a person being counted twice. The detection area can also be adjusted to exclude heat radiating objects such as radiators and windows heated by solar rays, and to exclude corridors and other adjacent areas through which people just pass by.

Sound pressure level measurement

The Insight-Sensor measures the sound pressure level using an analog solution, without involving any digital audio processing, codec, or recording. Each measured value is an average value of one second of analog integration. The measurements are performed every two minutes. The device is not capable of recording or streaming audio samples.

Bluetooth Low Energy beacon and remote control

The Insight-Sensor is a Bluetooth Low Energy (BLE) device. The Insight-Sensor support for Bluetooth beacon enables nearby mobile devices with a specific app installed to interact when in close proximity to the broadcasting Insight-Sensor. The Bluetooth beacon can be used for services such as indoor positioning of the mobile device. The service and mobile app need to be provided by a third party. The Bluetooth connection can also be used for communication with the RP-C-RC-BLE remote control, which makes it possible to control the lighting, blinds, and air conditioning in a zone of an office building.

Product	Part number
RP-C-EXT-IS-BLE	SXWREISBLE10001
RP-C-EXT-MR-K5 SpaceLogic Sensor Mounting Ring Kit 5 pcs	SXWREMR5XX10001

Specifications

Electrical

DC input supply voltage

24 VDC

Maximum power consumption

0.35 W

Environment

Ambient temperature, operating

0 to 50 °C (32 to 122 °F)

Ambient temperature, storage

-20 to +70 °C (-4 to +158 °F)

Humidity

20 to 90 % RH non-condensing

Material

Plastic flame rating

UL94 V-0

Ingress protection rating

IP 20

Cover color

Signal white (RAL9003)

Mechanical

action_zoom_plus_stroke

Overall external diameter

97.5 mm (3.84 in.)

Diameter of mounting clearance hole

75.0 to 76.0 mm (2.95 to 3.00 in.)

External washer thickness

12 mm (0.47 in.)

Overall external thickness

19 mm (0.75 in.)

Internal thickness

20 mm (0.79 in.)

Overall internal depth

28 mm (1.10 in.)

Weight, Insight-Sensor with mounting springs (3x)

0.088 kg (0.194 lb)

Weight, Insight-Sensor with mounting ring

0.098 kg (0.216 lb)

Installation

Plastic unit to be fitted flush in a suspended ceiling tile with a thickness of up to 45 mm (1.77 in.)

The mounting springs enable quick and easy installation in a suspended celing. The mounting ring allows the device to be installed in a ceiling with drywall anchors or to a 102 mm (4 in.) junction box.

Compatibility

EcoStruxure BMS server communication

EcoStruxure Building Operation

version 4.0.1 and later

Extended mounting height range, from 2.5–3.0 m (8–10 ft) to 2.3–3.3 m (7.5–10.8 ft)

EcoStruxure Building Operation

version 6.0.1 and later

Agency compliances

Emission

RCM; BS/EN 61000-6-3; BS/EN IEC 63044-5-2; FCC Part 15, Subparts B and C, Class B

Immunity

BS/EN 61000-6-2; BS/EN IEC 63044-5-3

Radio

EN 300 328 V2.1.1

Safety standards

BS/EN 60730-1; BS/EN 60730-2-11; BS/EN IEC 63044-3; UL 916 C-UL US Listed

FCC ID

DVE-IS1

ISED certification number

IC: 24775-IS1

Fire performance in air-handling spaces ^a

UL 2043

Communication ports

Room bus

RS-485

Dual RJ45 ports for daisy-chain configurations

Use a Cat 5 (or higher) cable

Maximum total length of the room bus: 72 m (236 ft)

Room bus protection

Transient voltage suppressors on communication and power signals

Wireless connectivity

Bluetooth Low Energy

Communication protocol

Bluetooth ^® 5.1 Low Energy compliant

Frequency

2.402 to 2.480 GHz

Maximum communication distance

Line-of-sight: 50 m (164 ft)

Maximum output power

3 dBm

Antenna

Integrated antenna

Beacon protocol

iBeacon

Hardware

Main microcontroller

CPU type

ARM Cortex-M4 single-core

Frequency

38.4 MHz

SRAM (embedded)

256 KB

Flash memory (embedded)

1024 KB

Flash memory (serial)

16 MB

Sub microcontroller

CPU type

ARM Cortex-M4 single-core

Frequency

80 MHz

SRAM (embedded)

320 KB

Flash memory (embedded)

1 MB

Flash memory (serial)

2 MB

Additional hardware

Status indicator

LED (green and red) that shows the status of the device

Address switch

Rotary switch 0 to 9

Set button

Push-button switch

People counting

Sensor

Longwave infrared (LWIR) microbolometer

Detection range

See image and table below.

action_zoom_plus_stroke

Sensor mounting height	Sensor detection range (diameter) ^a
3.3 m (10.8 ft)	8.0 m (26 ft)
3.0 m (10 ft)	7.0 m (22 ft)
2.7 m (9 ft)	5.8 m (19 ft)
2.5 m (8 ft)	5.2 m (17 ft)
2.3 m (7.5 ft)	4.5 m (14 ft)

Average counting accuracy ^a

Up to 90%

Motion detection

Sensor

Quad-type passive infrared (PIR) sensor with Fresnel lens

Detection range

See image and table below.

action_zoom_plus_stroke

Sensor mounting height	Sensor detection range (diameter)
3.0 m (10 ft)	8.6 m (28 ft)
2.7 m (9 ft)	8.0 m (26 ft)
2.5 m (8 ft)	7.4 m (24 ft)

Luminosity measurements

Sensor

Ambient Light Sensor (ALS)

action_zoom_plus_stroke

Spectral response

Human eye

Luminosity range

0 to 10,000 lux

Field of view

30 degrees from vertical

Sound pressure level measurements

Sensor

Microelectromechanical system (MEMS) acoustic sensor

Dynamic pressure

35 to 79 dBA

Accuracy

+/- 3 dBA

Bandwidth

10 Hz to 8 kHz

Temperature measurements

Range

0 to 50 °C (32 to 122 °F)

Accuracy

+/-1 °C (+/-1.8 °F)

Humidity measurements

Range

0 to 100% RH

Accuracy

+/-4% (within the range of 20 to 80% RH)

+/-6% (outside the range of 20 to 80% RH)
